AIRCRAFT
Type: Gulfstream G450
Number: 2
Category: Large Jet
Registration: TC-WIN & TC-WNG
Manufacturer: Gulfstream Aerospace
Production: Between May 2005 and January 2018
Number of Aircraft in Service: 354
Safety History: No Any G450 Crash or Damage event in Aviation Industry.

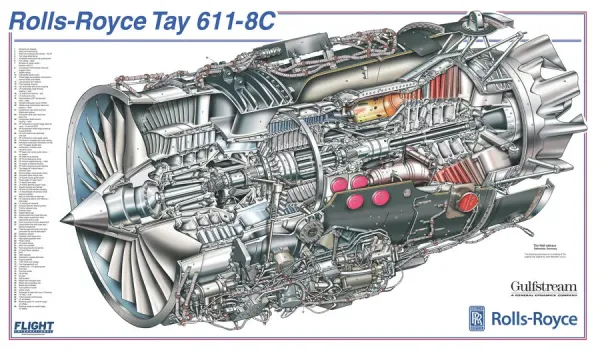

POWER PLANT
Number of Engine: 2
Model: Rolls-Royce TAY MK-611 8C

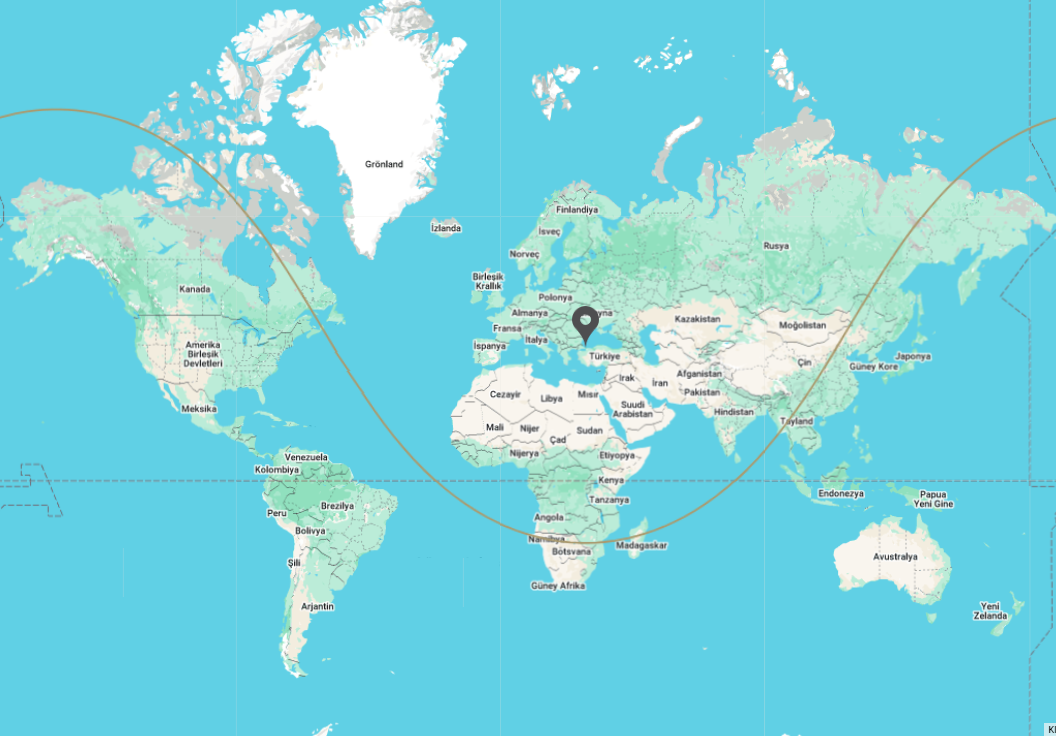

RANGE
Normal Range: 4,100 Nm
Max. Range: 4,350 Nm
Service Ceiling: 45,000 Ft
Cruise Speed: 476 Kts

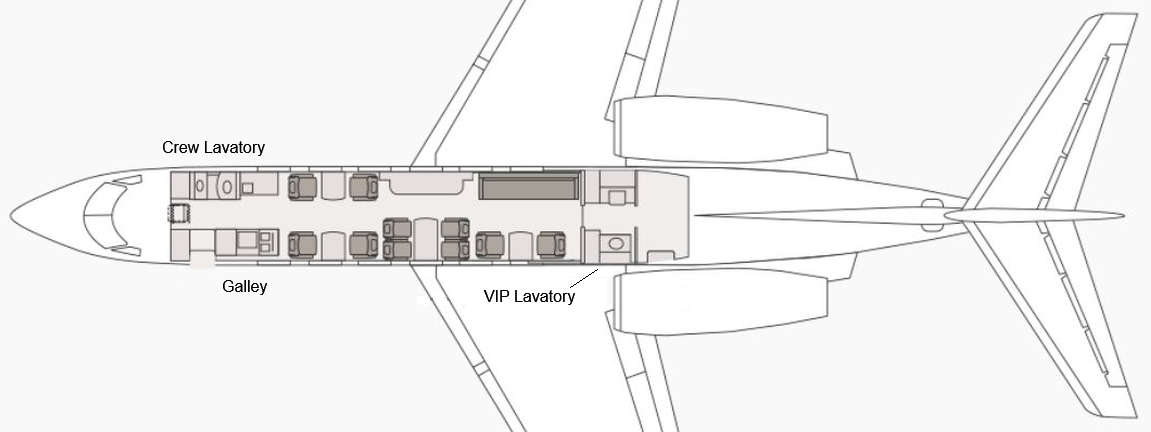

CABIN LAYOUT
Passenger Seat: 13
Lavatory: 2 (Aft & Forward)
Galley: Forward

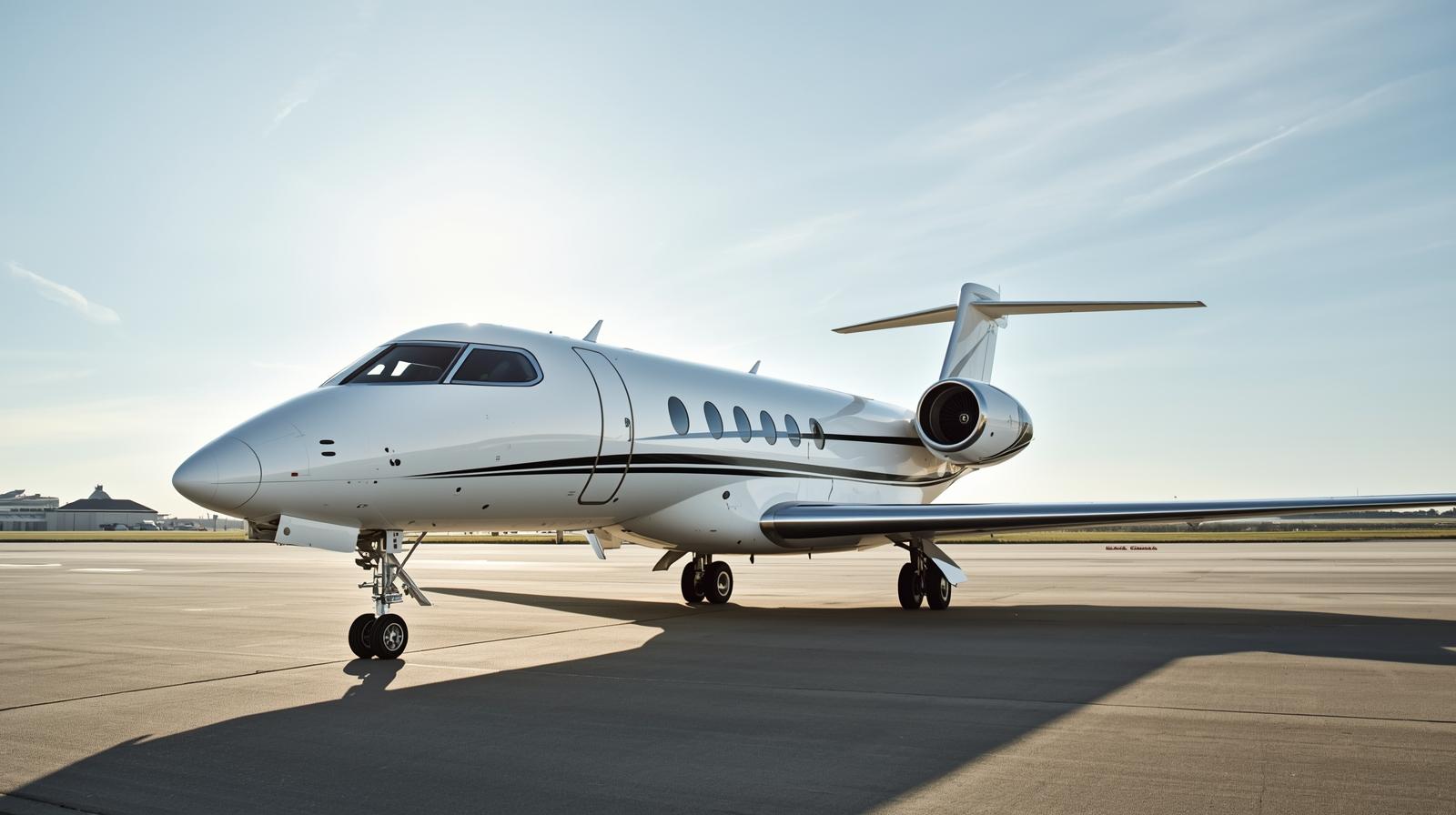

EXTERIOR
Fuselage Length: 89 Ft 4 In
Fuselage Height: 25 Ft 2 In
Wing Span: 77 Ft 10 In

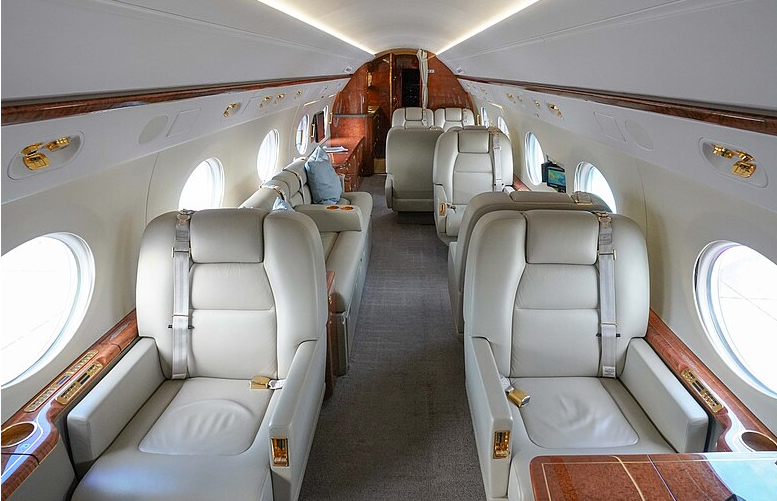

INTERIOR

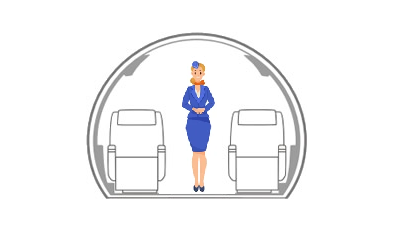

Cabin Height: 6 Ft 2 In
Cabin Width: 7 Ft 4 In
Cabin Length: 45 Ft 1 In
Cabin Volume: 1,523 Cu Ft
OPERATING WEIGHTS
Max Take-Off Weight: 74,600 Lbs
Fuel Capacity: 29,281 Lbs
Baggage Capacity: 169 Ft3
Payload: 2,500 Lbs
CREW
Cockpit: 2 Pilots
Cabin: One Stewardess
